TL SERIES

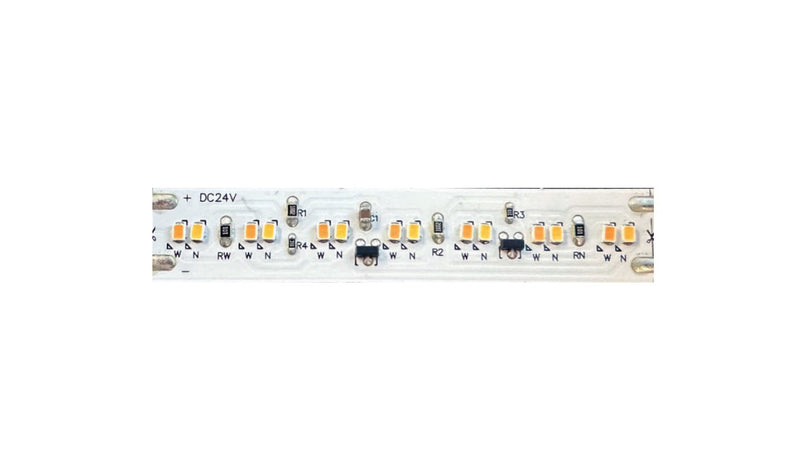

TL24CD
24VDC CLASSIC DIM (DtW) FLEXIBLE LED STRIP
The TL24CD flexible strip light uses high density LED chips to produce exceptional illumination. The Classic Dim (DtW) function is built in and the product dims and warms at the same time when using standard dimming protocols (0-10V and TRIAC).
Technical Specifications
Technical Specs
Operating Voltage
24VDC
Power Consumption
5.5W/ft
Lumens/ft (3000K)
528lm/ft
Efficacy (3000K)
88lm/W
Color Temperature (DtW)
3000K-1800K
CRI
92
LED Pitch
0.26"
LED Life
50,000 hrs
LED Chips/ft
69/ft
R9 Value
78
Cuttable Increments
2.5"
Max Run Length
16.4'
MacAdam Ellipse Binning
3-step
Dimming Levels
0/1% (0-10V) 1% Phase
Warranty
5 years
