SW SERIES
MSW3
12VDC LED STEP/WALL LIGHT

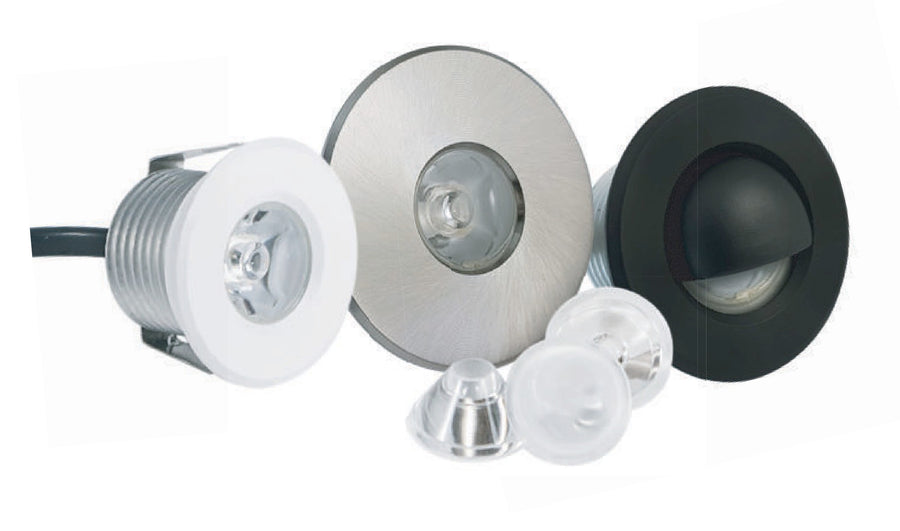

The MSW3 LED step/wall light uses a single chip COB and an acrylic lens. Its aluminum housing lends to its durability. These step/wall lights are great for interior and exterior step lighting applications. They are also used in millwork applications. Interchangeable lenses of 15°, 30°, and 60° are provided.
Technical Specifications
Technical Specs
Operating Voltage
12VDC
Power Consumption
2W
Lumens Delivered (3000K)
90lm
Efficacy (3000K)
45lm/W
Trims
Steel
Color Temperatures
3000K, 5000K
CRI
90+
Beam
15°, 30°, 60°
LED Chips
COB
MacAdam Ellipse Binning
3-step
Housing
Aluminum
Dimmable
YES
Warranty
5 years
