DR SERIES

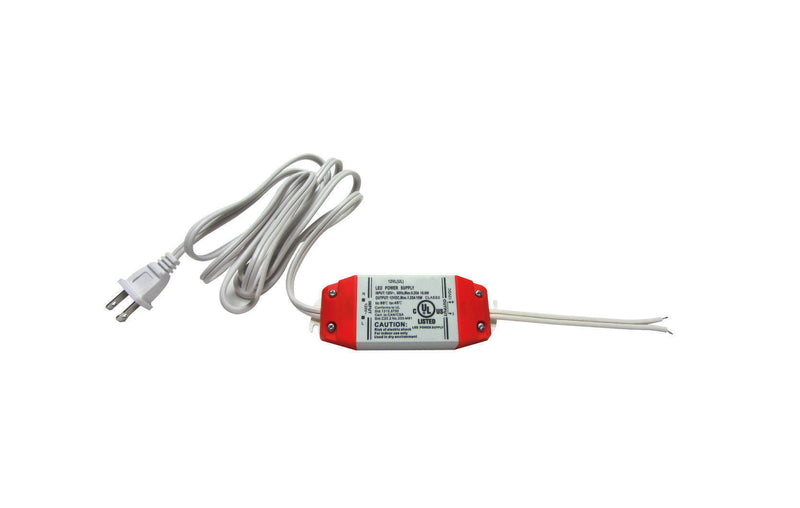

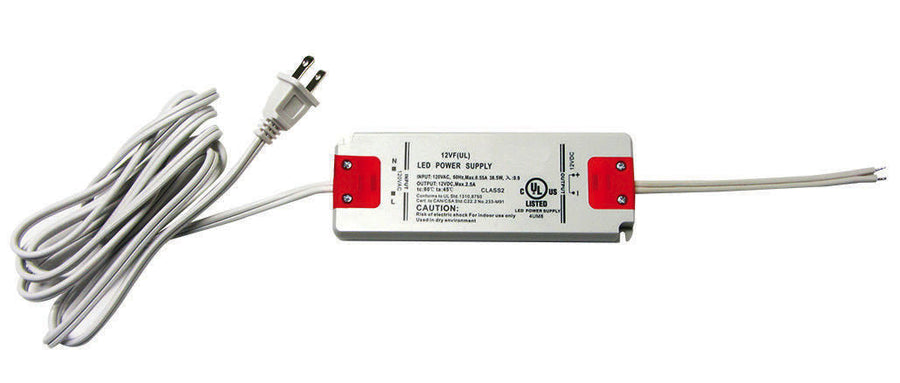

DR-12VDC
- NON-DIMMABLE LED DRIVERS
Non-dimmable 12VDC drivers that come in 15W and 30W. Wired with plugs, but have wiring compartments for both input and output, eliminating the need for a wiring enclosure.
Technical Specifications
Technical Specs
Input Voltage
100-130VAC
Efficiency
85%@120VAC
Working Temperature
-20~115°F / -10~45°C
Rated Power
15W/30W
Protection
Short Circuit/Over Voltage/Over Temp.
Power Factor (at full load)
0.95@110VAC
Output Voltage
12VDC
Dimming
NO
Rated Locations
Dry
Warranty
3 years
