WMSL SERIES

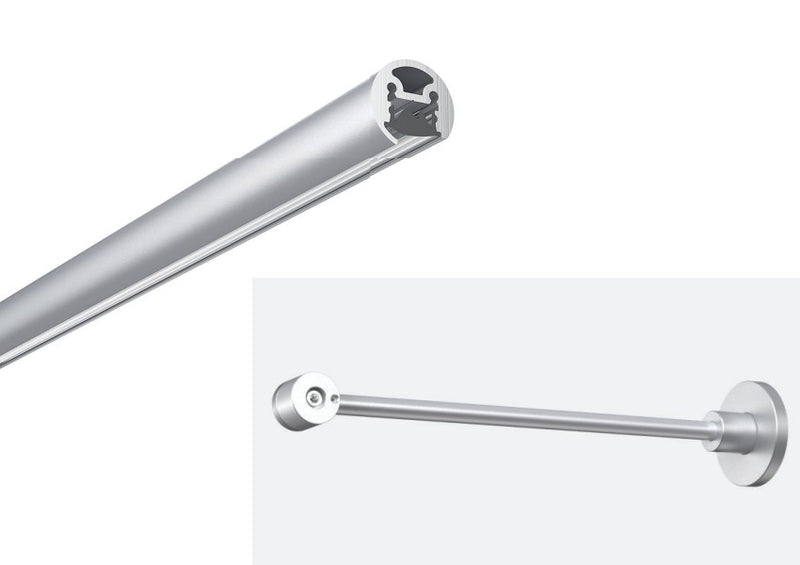

WMSL SERIES LED Sign Lighting - WMSL24

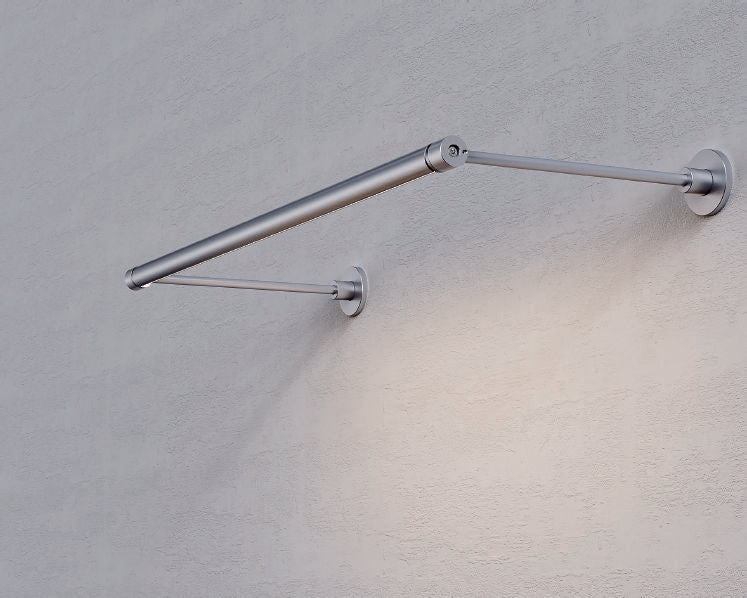

The WMSL24 is a 24VDC wall mount sign light that utilizes our TL24COB-HO series tape light. Aside from the arms, it comes preassembled. Its asymmetric beam spread helps wash the sign/wall with light. Maximum length is 48 inches.
Technical Specifications
Technical Specs
Operating Voltage
24VDC
Power Consumption
3.0W/ft
Lumens/ft (3000K)
297lm/ft
Efficacy (3000K)
99lm/W
Color Temperatures
2400K, 2700K, 3000K, 3500K, 4000K
Beam Angle
Asymmetric 60° x 120°
LED Life
50,000 hrs
Max Length
48"
Lengths
12"/24"/36"/48"/CUSTOM
Dimming Levels
0.1% (0-10V) 1% Phase
Warranty
5 years
