TL SERIES
TL24NEON-ASY24VDC AYSMMETRIC LED NEON

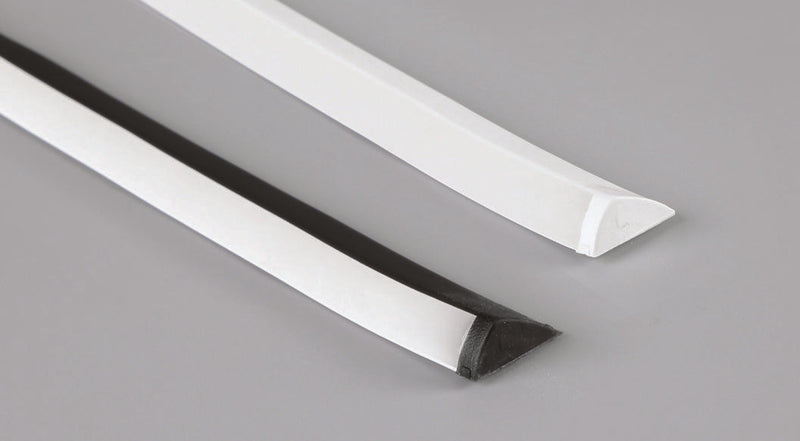

The TL24NEON-ASY neon solves your cabinet lighting needs. Using asymmetric beam spread in a wedge shaped housing allows the light source to disappear when viewed directly. Silicone housings, available in white and black, allow for further camouflage. High temperature 3M tape allows for a reliable and discreet mounting.
Technical Specifications
Technical Specs
Operating Voltage
24VDC
Power Consumption
3.7W/ft
Lumens/ft (3000K)
201lm/ft (BL), 219lm/ft (WH)
Efficacy (3000K)
59lm/W
Color Temperatures
2400K, 2700K, 3000K, 3500K, 4000K
CRI
92
Beam Angle / Polarizing Angle
120° / 40°
LED Life
50,000 hrs
LED Chips/ft
112/ft
R9 Value
66
Cuttable Increments
FREE-CUT (cut-anywhere)
Max Run Length
16.4'
MacAdam Ellipse Binning
3-step
Dimming Levels
0.1% (0-10V) 1% Phase
Warranty
5 years
