TL SERIES

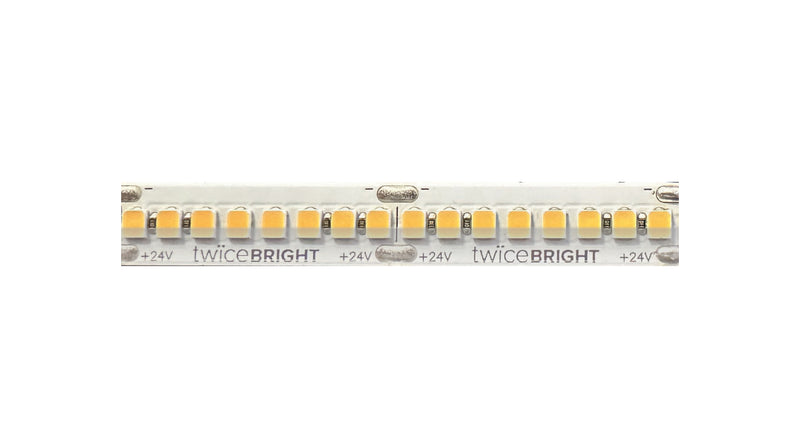

TL24HE-240-OUT
24VDC OUTDOOR FLEXIBLE LED STRI
The TL24HE-240-OUT flexible strip light uses high density LED chips to produce exceptional illumination. With high efficiency chips you get an average of 163lm/W. This product is perfect for direct view and shallow channel applications due to the tight LED pitch. With a CRI of 97 and an R9 value of 98, these LED chips offer exceptional color rendering. All of our flexible LED strips utilize silicone coating and jacketing that guarantees consistency across our IP20, IP65 and IP67 strips.
Technical Specifications
Technical Specs
Operating Voltage
24VDC
Power Consumption
1W/ft, 1.8W/ft, 3W/ft, 4.4W/ft, 5.5W/ft, 6.6W/ft
Lumens/ft (3000K)
159lm/ft, 297 lm/ft, 495lm/ft, 706lm/ft, 897lm/ft, 1077lm/ft
Efficacy (3000K)
163lm/W (average)
Color Temperatures
1800K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
CRI
97
LED Pitch
0.16"
LED Life
50,000 hrs
LED Chips/ft
73/ft
R9 Value
98
Cuttable Increments
1.3"
Max Run Length
1W/ft - 96ft, 1.8W/ft - 56ft, 3W/ft 32.8ft, 4.4W/ft - 21ft, 5.6W/ft - 18ft, 6.6W/ft - 16.4ft
MacAdam Ellipse Binning
2-step
Dimming Levels
0/1% (0-10V) 1% Phase
Warranty
5 years
