Technical Specifications
Technical Specs
Trim

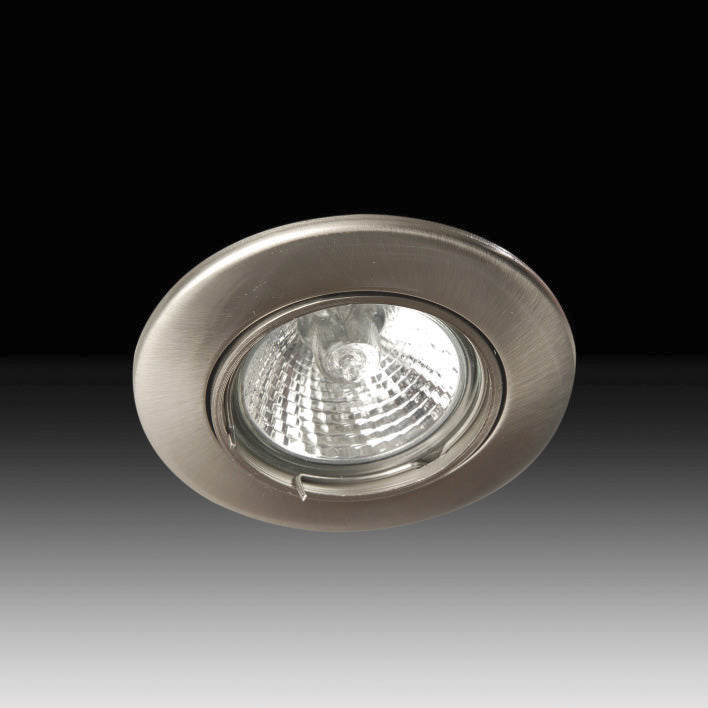

Round. Directional. Single gimbal 20° tilt Powder coated. Brushed finish is sealed Finishes available: Brushed Steel (BS), White (WH) Lamp secured with wire retaining clip
Mounting
Installs into 3/8" - 1 1/4" ceiling thickness Installs into 3" diameter hole New Construction Mounting Plate (NCMP 3000) available. Comes with hanger bars. WARNING: Cannot be directly covered in polycell spray-in foam insulation
Lamp
120V 50W max. GU10 based lamp Recommended lamp: 120V 9W max. Soraa LED lamp Halogen alternative: 120V 50W max. aluminum backed lamp

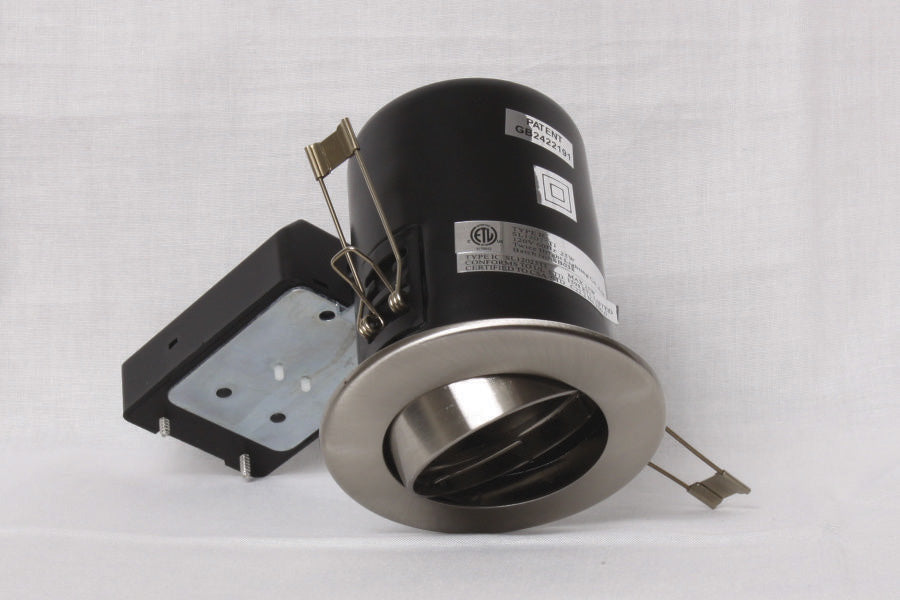

Housing
Powder coated 316L stainless steel construction No Insulation Contact (Non-IC) rated Air tight as per ASTM E283 Standard Approved for use in dry and damp locations Approved for feed-through wiring 4 1/4" housing depth
Warranty
Ten year Rust Free warranty Two year warranty against manufacturer defects in material or workmanship. Please refer to our Terms of Sale for full warranty terms and conditions.
