FL SERIES

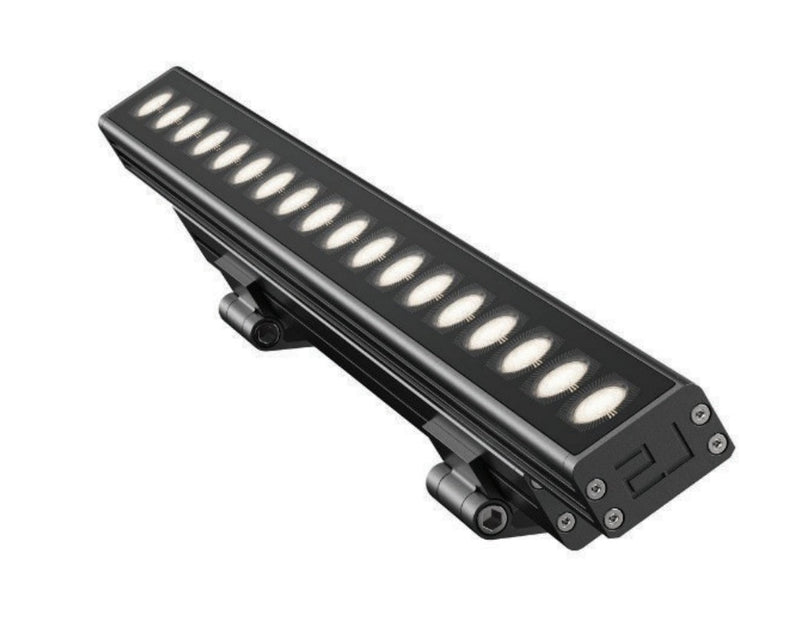

FL SERIES LED Facade Lighting - FL-UNV
The FL-UNV wall washing/grazing system is versatile for any architectural project. Coming in three standard lengths for design flexibility. The FL-UNV allows for clean design, efficient performance for seamless integration into any project.
Technical Specifications
Technical Specs
Operating Voltage
100-277VAC
Power Consumption
18W (2ft)/27W (3ft)/36W (4ft)
Efficacy (3000K)
103lm/W
Color Temperatures
2700K, 3000K, 3500K, 4000K
CRI
80+
LED Life
50,000 hrs
Optics
13°, 20°, 25°, 35°, 45°, 10°x40°, 15°x55°, Custom
Operating Temperature
-4°F ~ 122°F -20°C ~ 50°C
Max No. of Fixtures
30
Max Load Per Circuit
1080W
Max Length of Cabling
65ft
MacAdam Ellipse Binning
3-step
Housing Material
6063 Aluminum
Lens Material
Optical Grade PMMA
Cover Material
Tempered Glass
Warranty
5 years
