DR SERIES

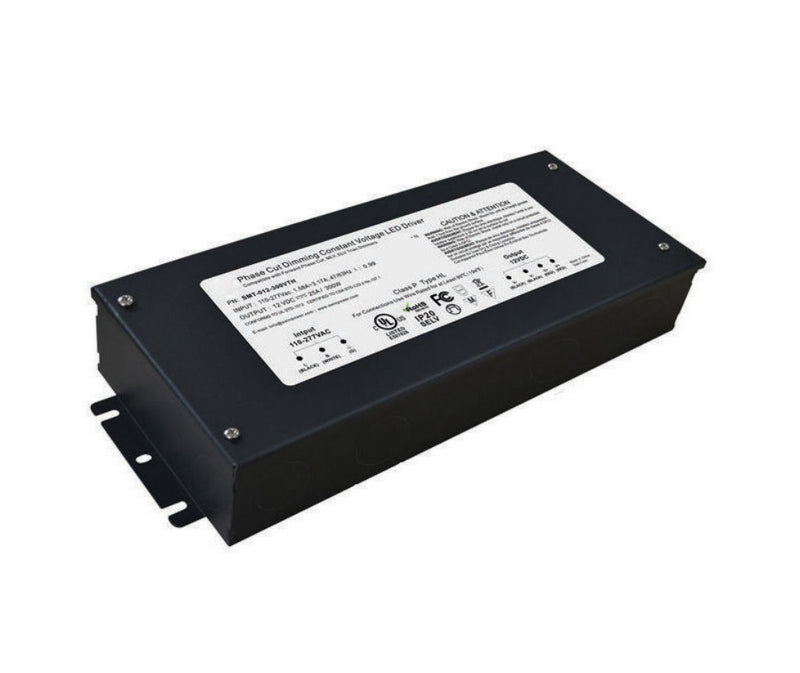

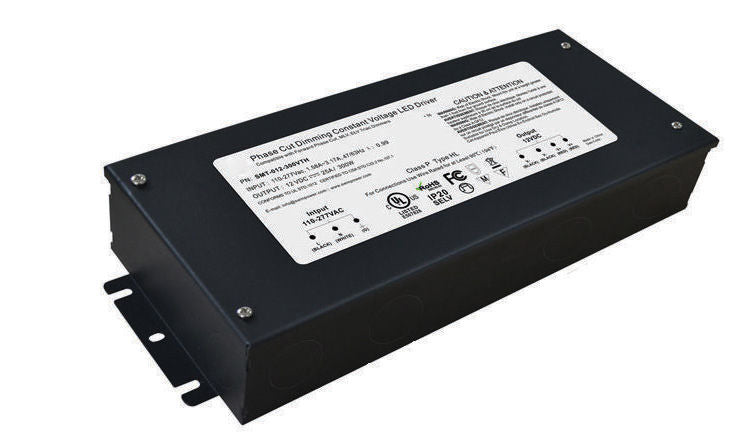

DR-24VDC-DIMS2-UNV
CLASS 2 UNIVERSAL DIMMABLE LED DRIVERS
The universal series drivers are one size fits all solution for indoor and outdoor lighting applications. Universal input of 100-277V, universal phase dimming (forward and reverse) to 1%, as well as 0.5% dimming in 0-10V.
Technical Specifications
Technical Specs
Input Voltage
100-277VAC
Efficiency
88%@120VAC / 92%@277VAC
Working Temperature
-40~140°F / -40~60°C
Rated Power
192W (96Wx2) / 288W(96Wx3)
Protection
Short Circuit/Over Load/High Temp
Power Factor (at full load)
0.99@120VAC / 0.95@277VAC
Output Voltage
24VDC
Minimum Dimming Levels
1% / 1% / 1% / 0.5%
Dimming
ELV/MLV/TRIAC/0~10V
Rated Locations
Dry / Damp / Wet
Warranty
7 years
